Supported Databases¶

SQLAlchemy includes many Dialect implementations for various backends. Dialects for the most common databases are included with SQLAlchemy; a handful of others require an additional install of a separate dialect.

See the section Dialects for information on the various backends available.

Database Urls¶

The create_engine() function produces an Engine object based on a URL. These URLs follow RFC-1738, and usually can include username, password, hostname, database name as well as optional keyword arguments for additional configuration. In some cases a file path is accepted, and in others a “data source name” replaces the “host” and “database” portions. The typical form of a database URL is:

dialect+driver://username:password@host:port/database

Dialect names include the identifying name of the SQLAlchemy dialect, a name such as sqlite, mysql, postgresql, oracle, or mssql. The drivername is the name of the DBAPI to be used to connect to the database using all lowercase letters. If not specified, a “default” DBAPI will be imported if available - this default is typically the most widely known driver available for that backend.

As the URL is like any other URL, special characters such as those that may be used in the password need to be URL encoded. Below is an example of a URL that includes the password "kx%jj5/g":

postgresql+pg8000://dbuser:kx%25jj5%2Fg@pghost10/appdb

The encoding for the above password can be generated using urllib:

>>> import urllib.parse
>>> urllib.parse.quote_plus("kx%jj5/g")
'kx%25jj5%2Fg'

Examples for common connection styles follow below. For a full index of detailed information on all included dialects as well as links to third-party dialects, see Dialects.

# default
engine = create_engine('postgresql://scott:tiger@localhost/mydatabase')

# psycopg2
engine = create_engine('postgresql+psycopg2://scott:tiger@localhost/mydatabase')

# pg8000
engine = create_engine('postgresql+pg8000://scott:tiger@localhost/mydatabase')

# default
engine = create_engine('mysql://scott:tiger@localhost/foo')

# mysqlclient (a maintained fork of MySQL-Python)
engine = create_engine('mysql+mysqldb://scott:tiger@localhost/foo')

# PyMySQL
engine = create_engine('mysql+pymysql://scott:tiger@localhost/foo')

engine = create_engine('oracle://scott:tiger@127.0.0.1:1521/sidname')

engine = create_engine('oracle+cx_oracle://scott:tiger@tnsname')

# pyodbc
engine = create_engine('mssql+pyodbc://scott:tiger@mydsn')

# pymssql
engine = create_engine('mssql+pymssql://scott:tiger@hostname:port/dbname')

# sqlite://<nohostname>/<path>
# where <path> is relative:
engine = create_engine('sqlite:///foo.db')

# Unix/Mac - 4 initial slashes in total
engine = create_engine('sqlite:////absolute/path/to/foo.db')

# Windows
engine = create_engine('sqlite:///C:\\path\\to\\foo.db')

# Windows alternative using raw string
engine = create_engine(r'sqlite:///C:\path\to\foo.db')

engine = create_engine('sqlite://')

Engine Creation API¶

sqlalchemy.create_engine(*args, **kwargs)¶

Create a new Engine instance.

The standard calling form is to send the URL as the first positional argument, usually a string that indicates database dialect and connection arguments:

engine = create_engine("postgresql://scott:tiger@localhost/test")

Additional keyword arguments may then follow it which establish various options on the resulting Engine and its underlying Dialect and Pool constructs:

engine = create_engine("mysql://scott:tiger@hostname/dbname",
                            encoding='latin1', echo=True)

The string form of the URL is dialect[+driver]://user:password@host/dbname[?key=value..], where dialect is a database name such as mysql, oracle, postgresql, etc., and driver the name of a DBAPI, such as psycopg2, pyodbc, cx_oracle, etc. Alternatively, the URL can be an instance of URL.

**kwargs takes a wide variety of options which are routed towards their appropriate components. Arguments may be specific to the Engine, the underlying Dialect, as well as the Pool. Specific dialects also accept keyword arguments that are unique to that dialect. Here, we describe the parameters that are common to most create_engine() usage.

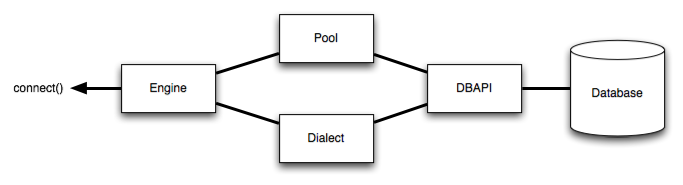

Once established, the newly resulting Engine will request a connection from the underlying Pool once Engine.connect() is called, or a method which depends on it such as Engine.execute() is invoked. The Pool in turn will establish the first actual DBAPI connection when this request is received. The create_engine() call itself does not establish any actual DBAPI connections directly.

See also

Engine Configuration

Dialects

Working with Engines and Connections

Parameters:

case_sensitive=True¶ – if False, result column names will match in a case-insensitive fashion, that is, row['SomeColumn']. connect_args¶ – a dictionary of options which will be passed directly to the DBAPI’s connect() method as additional keyword arguments. See the example at Custom DBAPI connect() arguments. convert_unicode=False¶ – if set to True, causes all String datatypes to act as though the String.convert_unicode flag has been set to True, regardless of a setting of False on an individual String type. This has the effect of causing all String -based columns to accommodate Python Unicode objects directly as though the datatype were the Unicode type. Deprecated since version 1.3: The create_engine.convert_unicode parameter is deprecated and will be removed in a future release. All modern DBAPIs now support Python Unicode directly and this parameter is unnecessary. creator¶ – a callable which returns a DBAPI connection. This creation function will be passed to the underlying connection pool and will be used to create all new database connections. Usage of this function causes connection parameters specified in the URL argument to be bypassed. echo=False¶ – if True, the Engine will log all statements as well as a repr() of their parameter lists to the default log handler, which defaults to sys.stdout for output. If set to the string "debug", result rows will be printed to the standard output as well. The echo attribute of Engine can be modified at any time to turn logging on and off; direct control of logging is also available using the standard Python logging module. See also Configuring Logging - further detail on how to configure logging. echo_pool=False¶ – if True, the connection pool will log informational output such as when connections are invalidated as well as when connections are recycled to the default log handler, which defaults to sys.stdout for output. If set to the string "debug", the logging will include pool checkouts and checkins. Direct control of logging is also available using the standard Python logging module. See also Configuring Logging - further detail on how to configure logging. empty_in_strategy¶ – The SQL compilation strategy to use when rendering an IN or NOT IN expression for ColumnOperators.in_() where the right-hand side is an empty set. This is a string value that may be one of static, dynamic, or dynamic_warn. The static strategy is the default, and an IN comparison to an empty set will generate a simple false expression “1 != 1”. The dynamic strategy behaves like that of SQLAlchemy 1.1 and earlier, emitting a false expression of the form “expr != expr”, which has the effect of evaluting to NULL in the case of a null expression. dynamic_warn is the same as dynamic, however also emits a warning when an empty set is encountered; this because the “dynamic” comparison is typically poorly performing on most databases. New in version 1.2: Added the empty_in_strategy setting and additionally defaulted the behavior for empty-set IN comparisons to a static boolean expression. encoding¶ – Defaults to utf-8. This is the string encoding used by SQLAlchemy for string encode/decode operations which occur within SQLAlchemy, outside of the DBAPI. Most modern DBAPIs feature some degree of direct support for Python unicode objects, what you see in Python 2 as a string of the form u'some string'. For those scenarios where the DBAPI is detected as not supporting a Python unicode object, this encoding is used to determine the source/destination encoding. It is not used for those cases where the DBAPI handles unicode directly. To properly configure a system to accommodate Python unicode objects, the DBAPI should be configured to handle unicode to the greatest degree as is appropriate - see the notes on unicode pertaining to the specific target database in use at Dialects. Areas where string encoding may need to be accommodated outside of the DBAPI include zero or more of: the values passed to bound parameters, corresponding to the Unicode type or the String type when convert_unicode is True; the values returned in result set columns corresponding to the Unicode type or the String type when convert_unicode is True; the string SQL statement passed to the DBAPI’s cursor.execute() method; the string names of the keys in the bound parameter dictionary passed to the DBAPI’s cursor.execute() as well as cursor.setinputsizes() methods; the string column names retrieved from the DBAPI’s cursor.description attribute. When using Python 3, the DBAPI is required to support all of the above values as Python unicode objects, which in Python 3 are just known as str. In Python 2, the DBAPI does not specify unicode behavior at all, so SQLAlchemy must make decisions for each of the above values on a per-DBAPI basis - implementations are completely inconsistent in their behavior. execution_options¶ – Dictionary execution options which will be applied to all connections. See execution_options() hide_parameters¶ – Boolean, when set to True, SQL statement parameters will not be displayed in INFO logging nor will they be formatted into the string representation of StatementError objects. New in version 1.3.8. implicit_returning=True¶ – When True, a RETURNING- compatible construct, if available, will be used to fetch newly generated primary key values when a single row INSERT statement is emitted with no existing returning() clause. This applies to those backends which support RETURNING or a compatible construct, including PostgreSQL, Firebird, Oracle, Microsoft SQL Server. Set this to False to disable the automatic usage of RETURNING. isolation_level¶ – this string parameter is interpreted by various dialects in order to affect the transaction isolation level of the database connection. The parameter essentially accepts some subset of these string arguments: "SERIALIZABLE", "REPEATABLE_READ", "READ_COMMITTED", "READ_UNCOMMITTED" and "AUTOCOMMIT". Behavior here varies per backend, and individual dialects should be consulted directly. Note that the isolation level can also be set on a per-Connection basis as well, using the Connection.execution_options.isolation_level feature. See also Connection.default_isolation_level - view default level Connection.execution_options.isolation_level - set per Connection isolation level SQLite Transaction Isolation PostgreSQL Transaction Isolation MySQL Transaction Isolation Setting Transaction Isolation Levels - for the ORM json_deserializer¶ – for dialects that support the JSON datatype, this is a Python callable that will convert a JSON string to a Python object. By default, the Python json.loads function is used. Changed in version 1.3.7: The SQLite dialect renamed this from _json_deserializer. json_serializer¶ – for dialects that support the JSON datatype, this is a Python callable that will render a given object as JSON. By default, the Python json.dumps function is used. Changed in version 1.3.7: The SQLite dialect renamed this from _json_serializer. label_length=None¶ – optional integer value which limits the size of dynamically generated column labels to that many characters. If less than 6, labels are generated as “_(counter)”. If None, the value of dialect.max_identifier_length, which may be affected via the create_engine.max_identifier_length parameter, is used instead. The value of create_engine.label_length may not be larger than that of create_engine.max_identfier_length. See also create_engine.max_identifier_length listeners¶ – A list of one or more PoolListener objects which will receive connection pool events. logging_name¶ – String identifier which will be used within the “name” field of logging records generated within the “sqlalchemy.engine” logger. Defaults to a hexstring of the object’s id. max_identifier_length¶ – integer; override the max_identifier_length determined by the dialect. if None or zero, has no effect. This is the database’s configured maximum number of characters that may be used in a SQL identifier such as a table name, column name, or label name. All dialects determine this value automatically, however in the case of a new database version for which this value has changed but SQLAlchemy’s dialect has not been adjusted, the value may be passed here. New in version 1.3.9. See also create_engine.label_length max_overflow=10¶ – the number of connections to allow in connection pool “overflow”, that is connections that can be opened above and beyond the pool_size setting, which defaults to five. this is only used with QueuePool. module=None¶ – reference to a Python module object (the module itself, not its string name). Specifies an alternate DBAPI module to be used by the engine’s dialect. Each sub-dialect references a specific DBAPI which will be imported before first connect. This parameter causes the import to be bypassed, and the given module to be used instead. Can be used for testing of DBAPIs as well as to inject “mock” DBAPI implementations into the Engine. paramstyle=None¶ – The paramstyle to use when rendering bound parameters. This style defaults to the one recommended by the DBAPI itself, which is retrieved from the .paramstyle attribute of the DBAPI. However, most DBAPIs accept more than one paramstyle, and in particular it may be desirable to change a “named” paramstyle into a “positional” one, or vice versa. When this attribute is passed, it should be one of the values "qmark", "numeric", "named", "format" or "pyformat", and should correspond to a parameter style known to be supported by the DBAPI in use. pool=None¶ – an already-constructed instance of Pool, such as a QueuePool instance. If non-None, this pool will be used directly as the underlying connection pool for the engine, bypassing whatever connection parameters are present in the URL argument. For information on constructing connection pools manually, see Connection Pooling. poolclass=None¶ – a Pool subclass, which will be used to create a connection pool instance using the connection parameters given in the URL. Note this differs from pool in that you don’t actually instantiate the pool in this case, you just indicate what type of pool to be used. pool_logging_name¶ – String identifier which will be used within the “name” field of logging records generated within the “sqlalchemy.pool” logger. Defaults to a hexstring of the object’s id. pool_pre_ping¶ – boolean, if True will enable the connection pool “pre-ping” feature that tests connections for liveness upon each checkout. New in version 1.2. See also Disconnect Handling - Pessimistic pool_size=5¶ – the number of connections to keep open inside the connection pool. This used with QueuePool as well as SingletonThreadPool. With QueuePool, a pool_size setting of 0 indicates no limit; to disable pooling, set poolclass to NullPool instead. pool_recycle=-1¶ – this setting causes the pool to recycle connections after the given number of seconds has passed. It defaults to -1, or no timeout. For example, setting to 3600 means connections will be recycled after one hour. Note that MySQL in particular will disconnect automatically if no activity is detected on a connection for eight hours (although this is configurable with the MySQLDB connection itself and the server configuration as well). See also Setting Pool Recycle pool_reset_on_return='rollback'¶ – set the Pool.reset_on_return parameter of the underlying Pool object, which can be set to the values "rollback", "commit", or None. See also Pool.reset_on_return pool_timeout=30¶ – number of seconds to wait before giving up on getting a connection from the pool. This is only used with QueuePool. pool_use_lifo=False¶ – use LIFO (last-in-first-out) when retrieving connections from QueuePool instead of FIFO (first-in-first-out). Using LIFO, a server-side timeout scheme can reduce the number of connections used during non- peak periods of use. When planning for server-side timeouts, ensure that a recycle or pre-ping strategy is in use to gracefully handle stale connections. New in version 1.3. See also Using FIFO vs. LIFO Dealing with Disconnects plugins¶ – string list of plugin names to load. See CreateEnginePlugin for background. New in version 1.2.3. strategy='plain'¶ – selects alternate engine implementations. Currently available are: the threadlocal strategy, which is described in Using the Threadlocal Execution Strategy; the mock strategy, which dispatches all statement execution to a function passed as the argument executor. See example in the FAQ. executor=None¶ – a function taking arguments (sql, *multiparams, **params), to which the mock strategy will dispatch all statement execution. Used only by strategy='mock'.

sqlalchemy.engine_from_config(configuration, prefix='sqlalchemy.', **kwargs)¶

Create a new Engine instance using a configuration dictionary.

The dictionary is typically produced from a config file.

The keys of interest to engine_from_config() should be prefixed, e.g. sqlalchemy.url, sqlalchemy.echo, etc. The ‘prefix’ argument indicates the prefix to be searched for. Each matching key (after the prefix is stripped) is treated as though it were the corresponding keyword argument to a create_engine() call.

The only required key is (assuming the default prefix) sqlalchemy.url, which provides the database URL.

A select set of keyword arguments will be “coerced” to their expected type based on string values. The set of arguments is extensible per-dialect using the engine_config_types accessor.

Parameters:

configuration¶ – A dictionary (typically produced from a config file, but this is not a requirement). Items whose keys start with the value of ‘prefix’ will have that prefix stripped, and will then be passed to create_engine. prefix¶ – Prefix to match and then strip from keys in ‘configuration’. kwargs¶ – Each keyword argument to engine_from_config() itself overrides the corresponding item taken from the ‘configuration’ dictionary. Keyword arguments should not be prefixed.

sqlalchemy.engine.url.make_url(name_or_url)¶

Given a string or unicode instance, produce a new URL instance.

The given string is parsed according to the RFC 1738 spec. If an existing URL object is passed, just returns the object.

class sqlalchemy.engine.url.URL(drivername, username=None, password=None, host=None, port=None, database=None, query=None)¶

Represent the components of a URL used to connect to a database.

This object is suitable to be passed directly to a create_engine() call. The fields of the URL are parsed from a string by the make_url() function. the string format of the URL is an RFC-1738-style string.

All initialization parameters are available as public attributes.

Parameters:	drivername¶ – the name of the database backend. This name will correspond to a module in sqlalchemy/databases or a third party plug-in. username¶ – The user name. password¶ – database password. host¶ – The name of the host. port¶ – The port number. database¶ – The database name. query¶ – A dictionary of options to be passed to the dialect and/or the DBAPI upon connect.

get_dialect()¶

Return the SQLAlchemy database dialect class corresponding to this URL’s driver name.

translate_connect_args(names=[], **kw)¶

Translate url attributes into a dictionary of connection arguments.

Returns attributes of this url (host, database, username, password, port) as a plain dictionary. The attribute names are used as the keys by default. Unset or false attributes are omitted from the final dictionary.

Parameters:	**kw¶ – Optional, alternate key names for url attributes. names¶ – Deprecated. Same purpose as the keyword-based alternate names, but correlates the name to the original positionally.

Pooling¶

The Engine will ask the connection pool for a connection when the connect() or execute() methods are called. The default connection pool, QueuePool, will open connections to the database on an as-needed basis. As concurrent statements are executed, QueuePool will grow its pool of connections to a default size of five, and will allow a default “overflow” of ten. Since the Engine is essentially “home base” for the connection pool, it follows that you should keep a single Engine per database established within an application, rather than creating a new one for each connection.

For more information on connection pooling, see Connection Pooling.

Custom DBAPI connect() arguments¶

Custom arguments used when issuing the connect() call to the underlying DBAPI may be issued in three distinct ways. String-based arguments can be passed directly from the URL string as query arguments:

db = create_engine('postgresql://scott:tiger@localhost/test?argument1=foo&argument2=bar')

If SQLAlchemy’s database connector is aware of a particular query argument, it may convert its type from string to its proper type.

create_engine() also takes an argument connect_args which is an additional dictionary that will be passed to connect(). This can be used when arguments of a type other than string are required, and SQLAlchemy’s database connector has no type conversion logic present for that parameter:

db = create_engine('postgresql://scott:tiger@localhost/test', connect_args = {'argument1':17, 'argument2':'bar'})

The most customizable connection method of all is to pass a creator argument, which specifies a callable that returns a DBAPI connection:

def connect():
    return psycopg.connect(user='scott', host='localhost')

db = create_engine('postgresql://', creator=connect)

Configuring Logging¶

Python’s standard logging module is used to implement informational and debug log output with SQLAlchemy. This allows SQLAlchemy’s logging to integrate in a standard way with other applications and libraries. There are also two parameters create_engine.echo and create_engine.echo_pool present on create_engine() which allow immediate logging to sys.stdout for the purposes of local development; these parameters ultimately interact with the regular Python loggers described below.

This section assumes familiarity with the above linked logging module. All logging performed by SQLAlchemy exists underneath the sqlalchemy namespace, as used by logging.getLogger('sqlalchemy'). When logging has been configured (i.e. such as via logging.basicConfig()), the general namespace of SA loggers that can be turned on is as follows:

• sqlalchemy.engine - controls SQL echoing. set to logging.INFO for SQL query output, logging.DEBUG for query + result set output. These settings are equivalent to echo=True and echo="debug" on create_engine.echo, respectively.
• sqlalchemy.pool - controls connection pool logging. set to logging.INFO to log connection invalidation and recycle events; set to logging.DEBUG to additionally log all pool checkins and checkouts. These settings are equivalent to pool_echo=True and pool_echo="debug" on create_engine.echo_pool, respectively.
• sqlalchemy.dialects - controls custom logging for SQL dialects, to the extend that logging is used within specific dialects, which is generally minimal.
• sqlalchemy.orm - controls logging of various ORM functions to the extent that logging is used within the ORM, which is generally minimal. Set to logging.INFO to log some top-level information on mapper configurations.

For example, to log SQL queries using Python logging instead of the echo=True flag:

import logging

logging.basicConfig()
logging.getLogger('sqlalchemy.engine').setLevel(logging.INFO)

By default, the log level is set to logging.WARN within the entire sqlalchemy namespace so that no log operations occur, even within an application that has logging enabled otherwise.

The echo flags present as keyword arguments to create_engine() and others as well as the echo property on Engine, when set to True, will first attempt to ensure that logging is enabled. Unfortunately, the logging module provides no way of determining if output has already been configured (note we are referring to if a logging configuration has been set up, not just that the logging level is set). For this reason, any echo=True flags will result in a call to logging.basicConfig() using sys.stdout as the destination. It also sets up a default format using the level name, timestamp, and logger name. Note that this configuration has the affect of being configured in addition to any existing logger configurations. Therefore, when using Python logging, ensure all echo flags are set to False at all times, to avoid getting duplicate log lines.

The logger name of instance such as an Engine or Pool defaults to using a truncated hex identifier string. To set this to a specific name, use the “logging_name” and “pool_logging_name” keyword arguments with sqlalchemy.create_engine().
